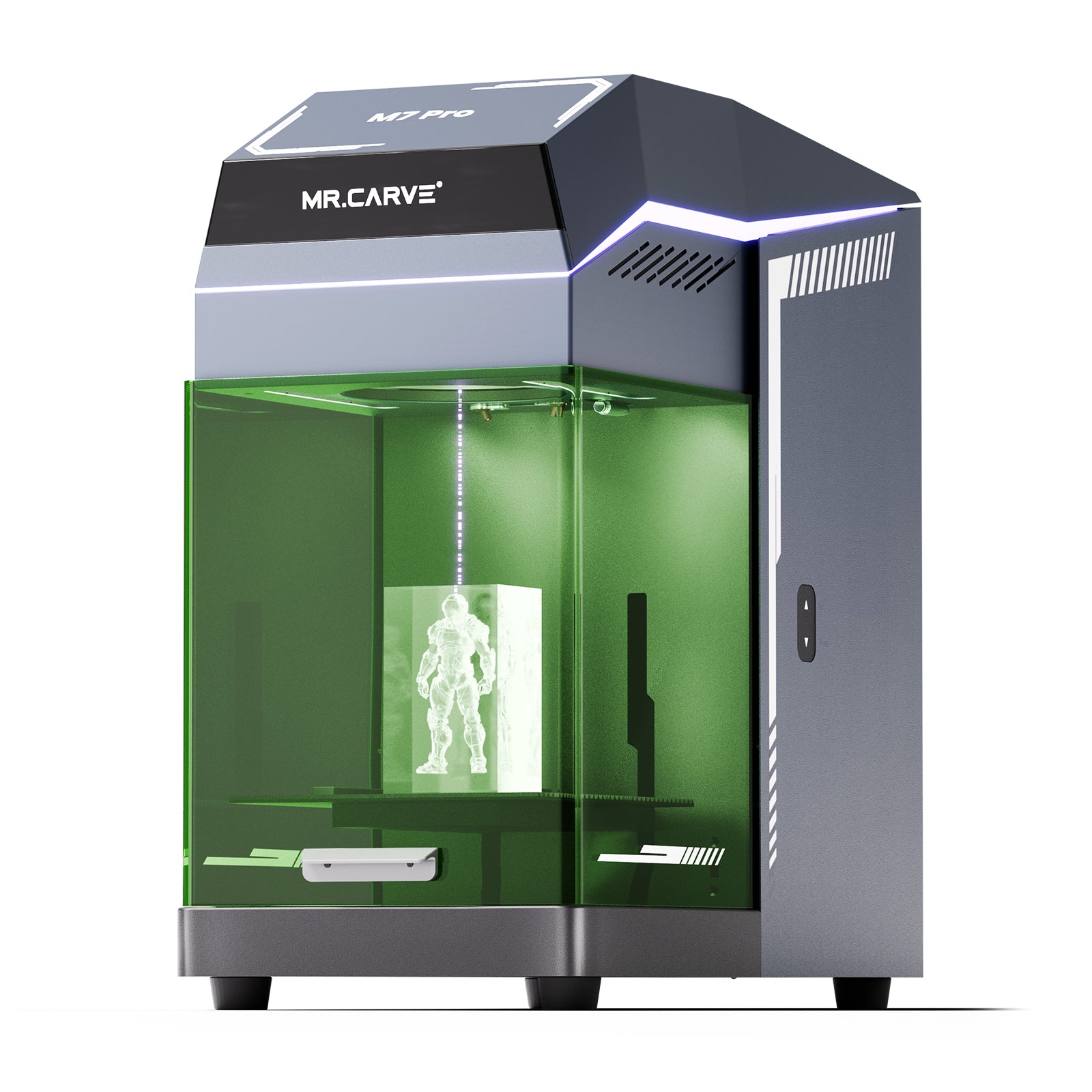

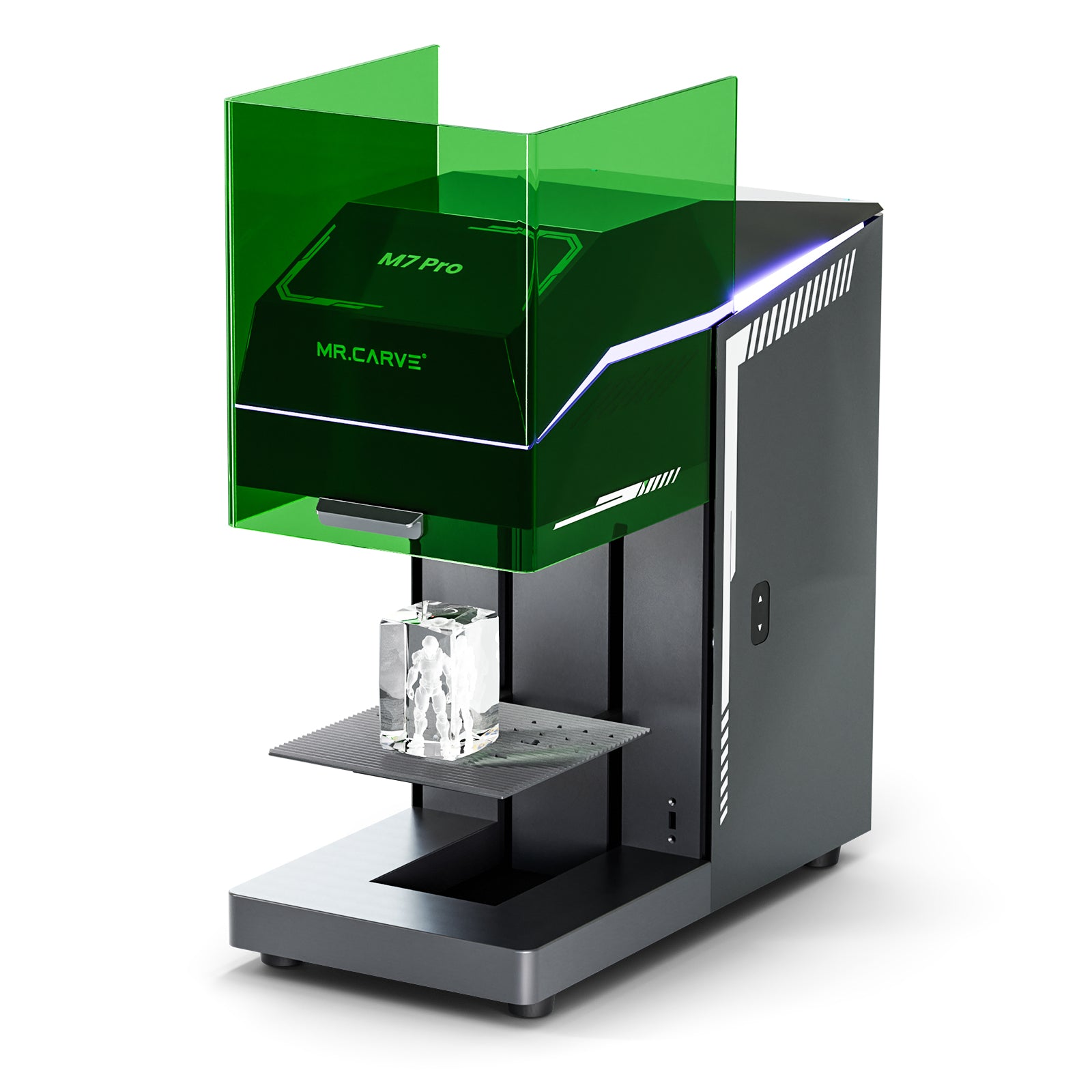

M7 Pro UV Laser Marking Machine
-
【Laser parameters】
-
Laser type: 355nm ultraviolet laser (UV)
-
Laser power: 5W
-
-
【Working area】
- Flat engraving: 150mm*150mm
- Innner engraving: 70mm*70mm*70mm
- Flat engraving: 150mm*150mm
-
【Software】 Mr Carve Laser & Lightburn
-
【Engraving speed】10,000 mm/s
-
【Laser spot】 0.0019 mm²
-
【Features】electric lifting, two dots focusing, preview mode, side panel ventilation, relief sculpture, crafting
-

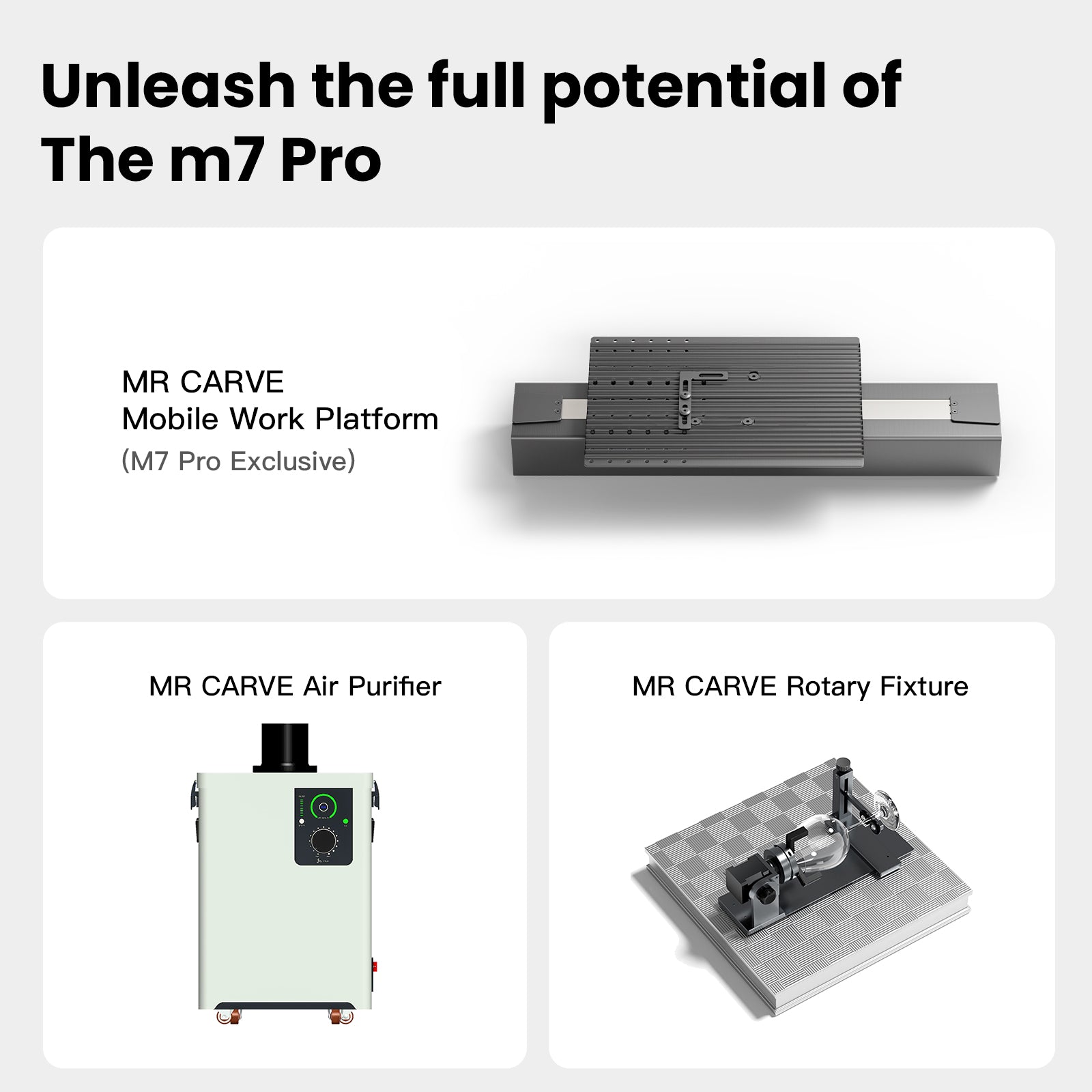

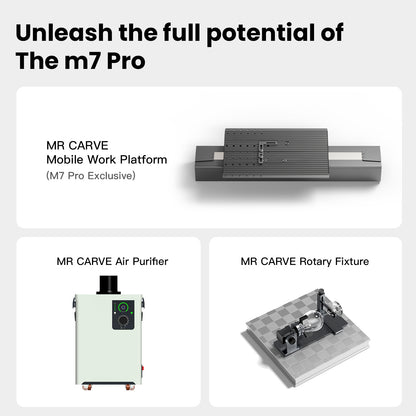

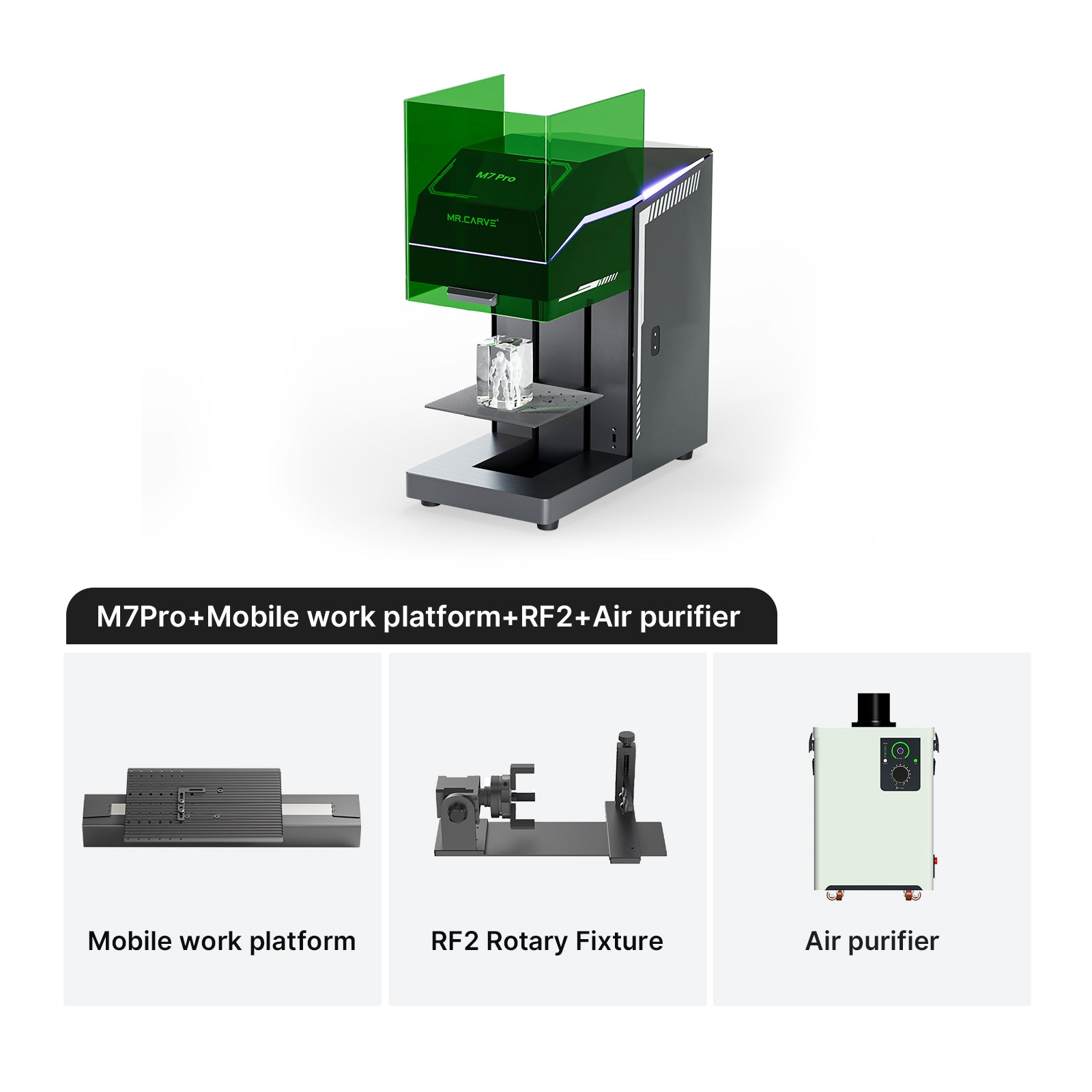

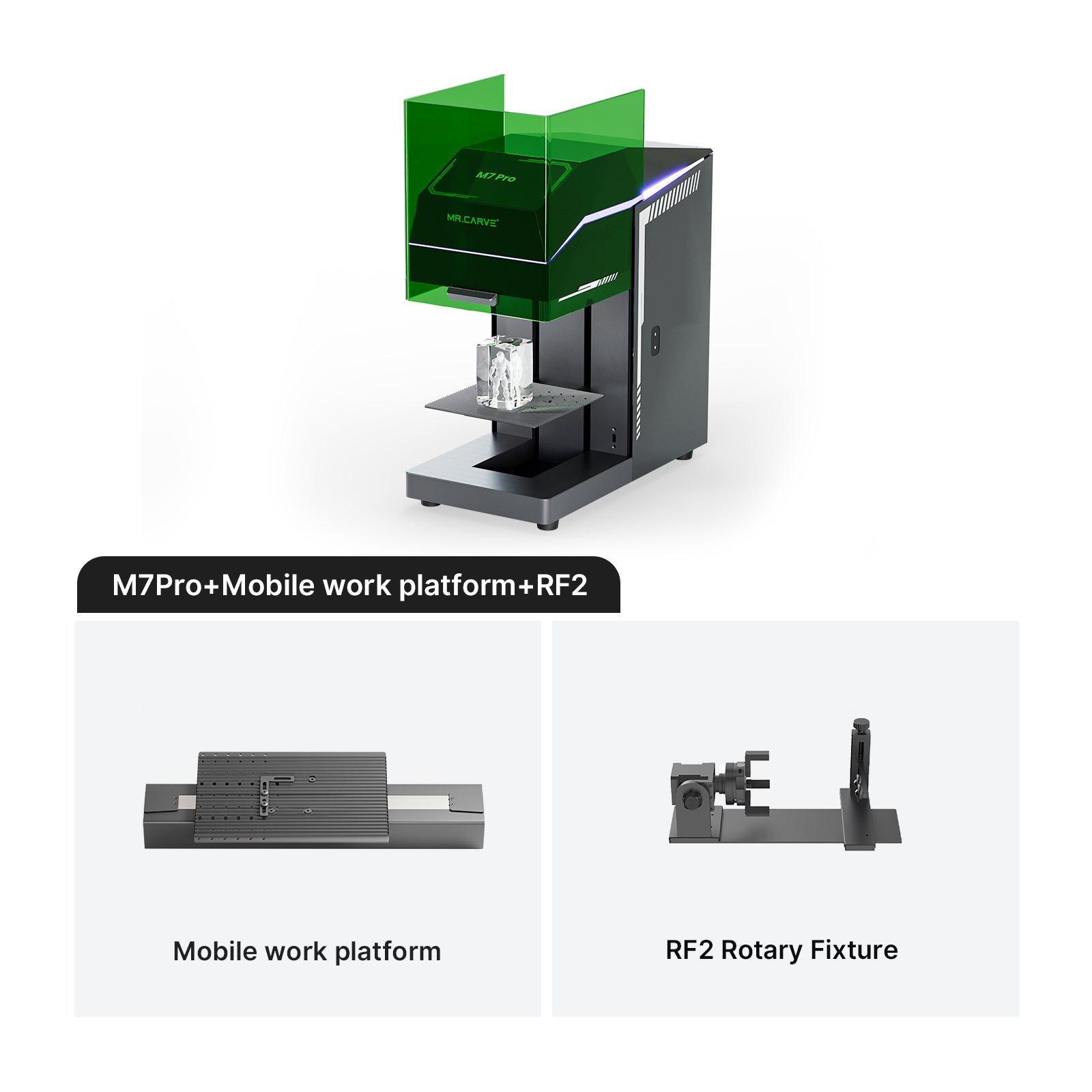

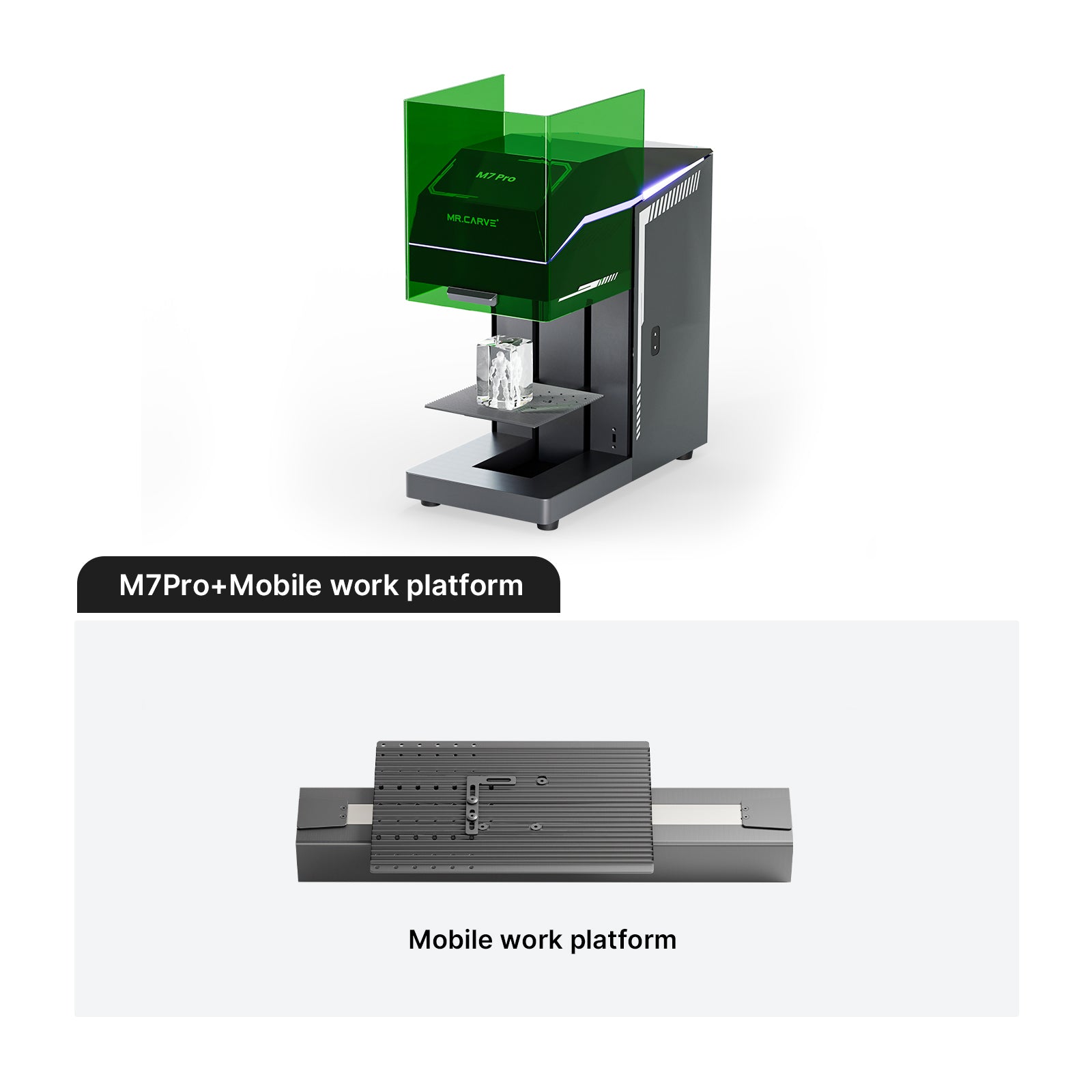

【Accessories】 can work with RF2(rotating clamper), Air purifier and Mobile work platfrom.
- 【Applicable materials】metals, plastic, oxidized surface, lacquer
Pairs well with
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
-
FAQ’s
Use this text to answer questions in as much detail as possible for your customers.
World’s First 3-in-1 UV Laser Engraver
AI Precision Meets Smart Focus

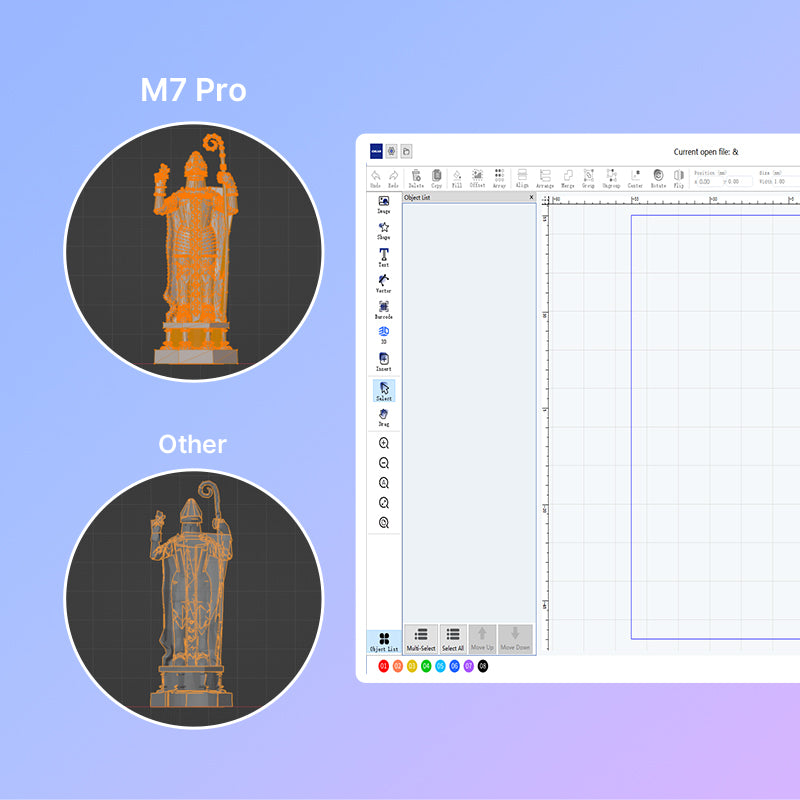

Helios 3D Smart Recognition Algorithm
Using self-developed Helios chip, AI acquisition 3d model data recognition algorithms to realize the texture of the crystal inner carving perfectly show every detail.

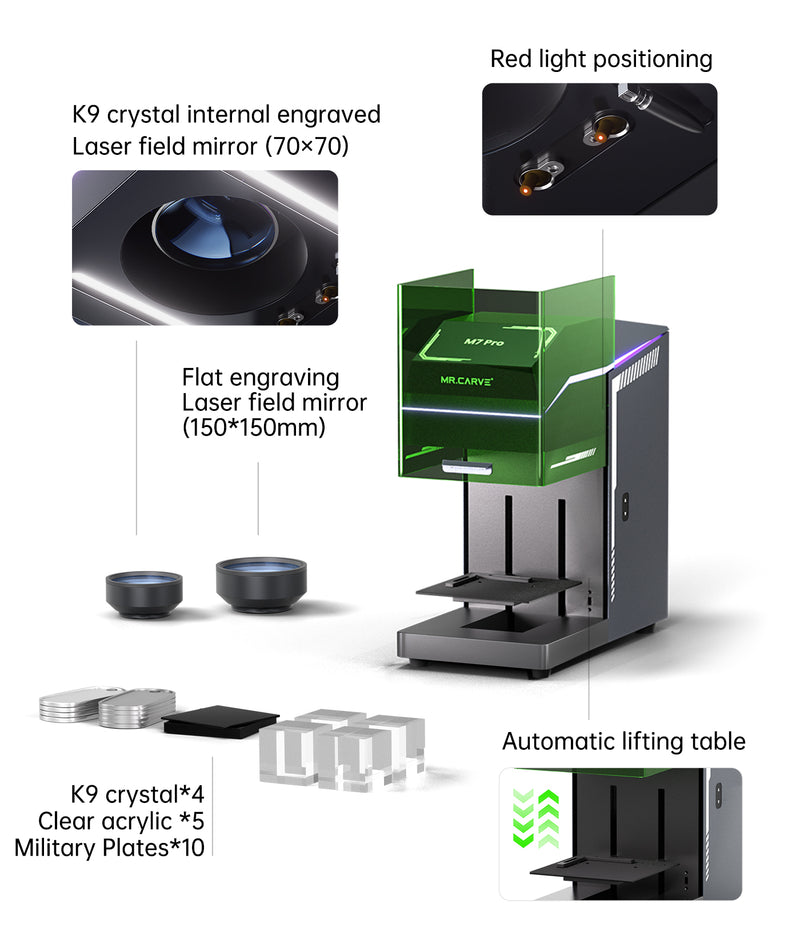

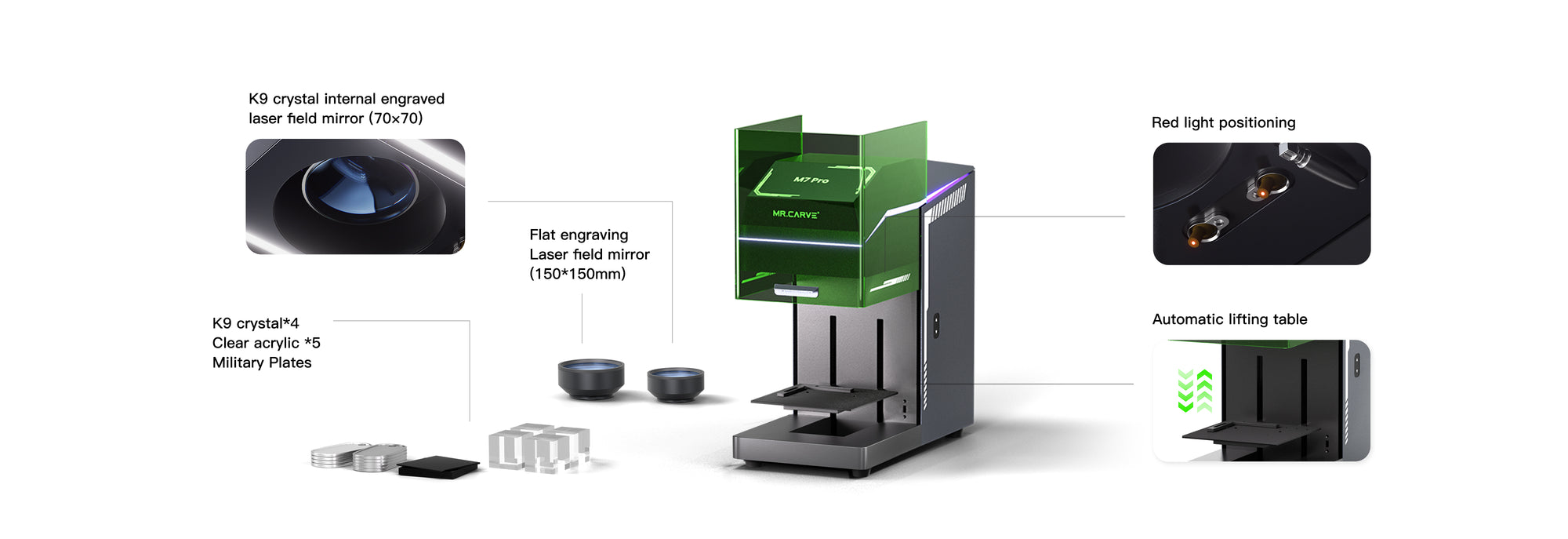

Dual Red Light Focus & Platform Z-axis Lift
Easily adjust focus with the click of a button .

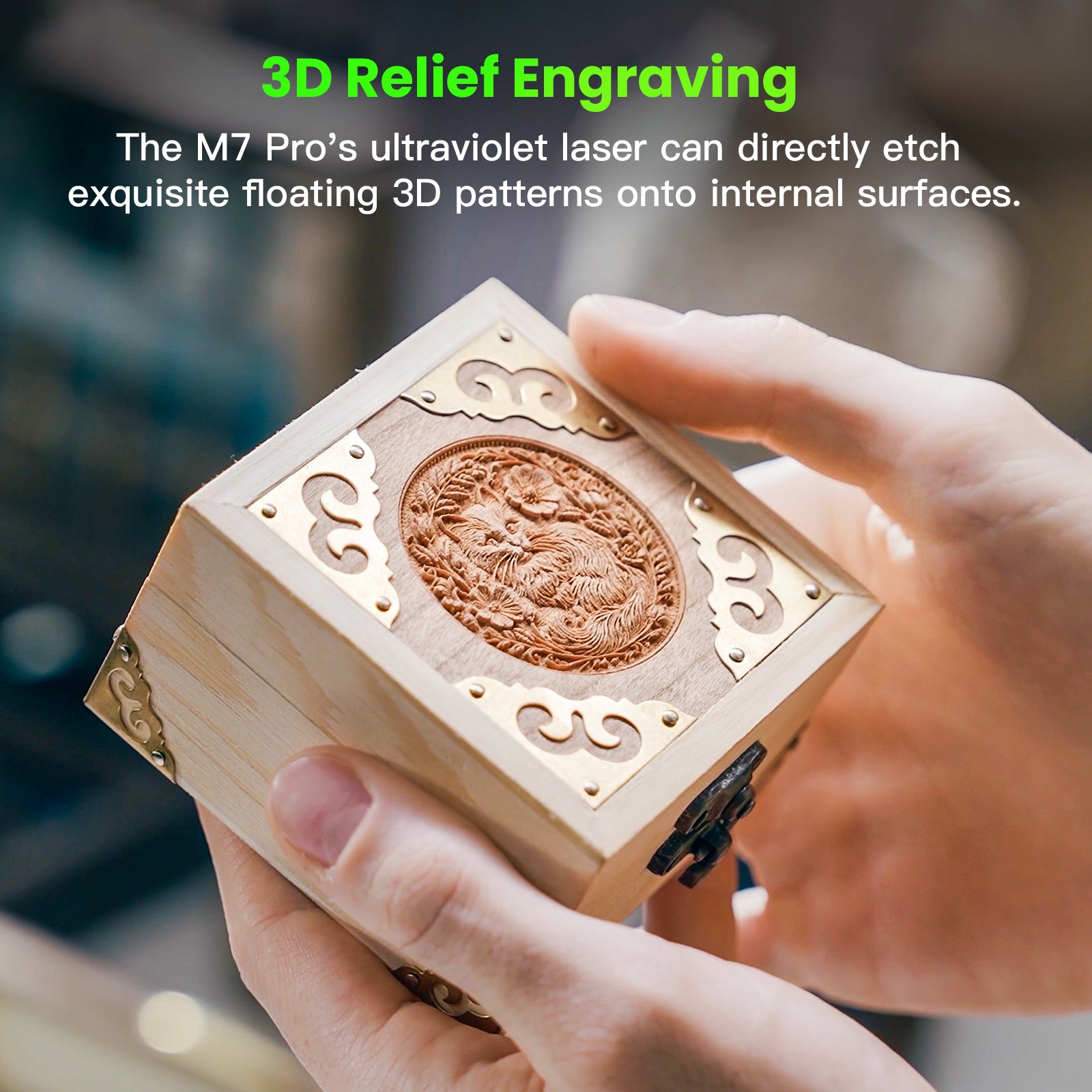

Z-axis for deep relief.
Create Freely. Go Larger.
True Benefits of M7 Pro UV Laser Engraver
Lightning Fast

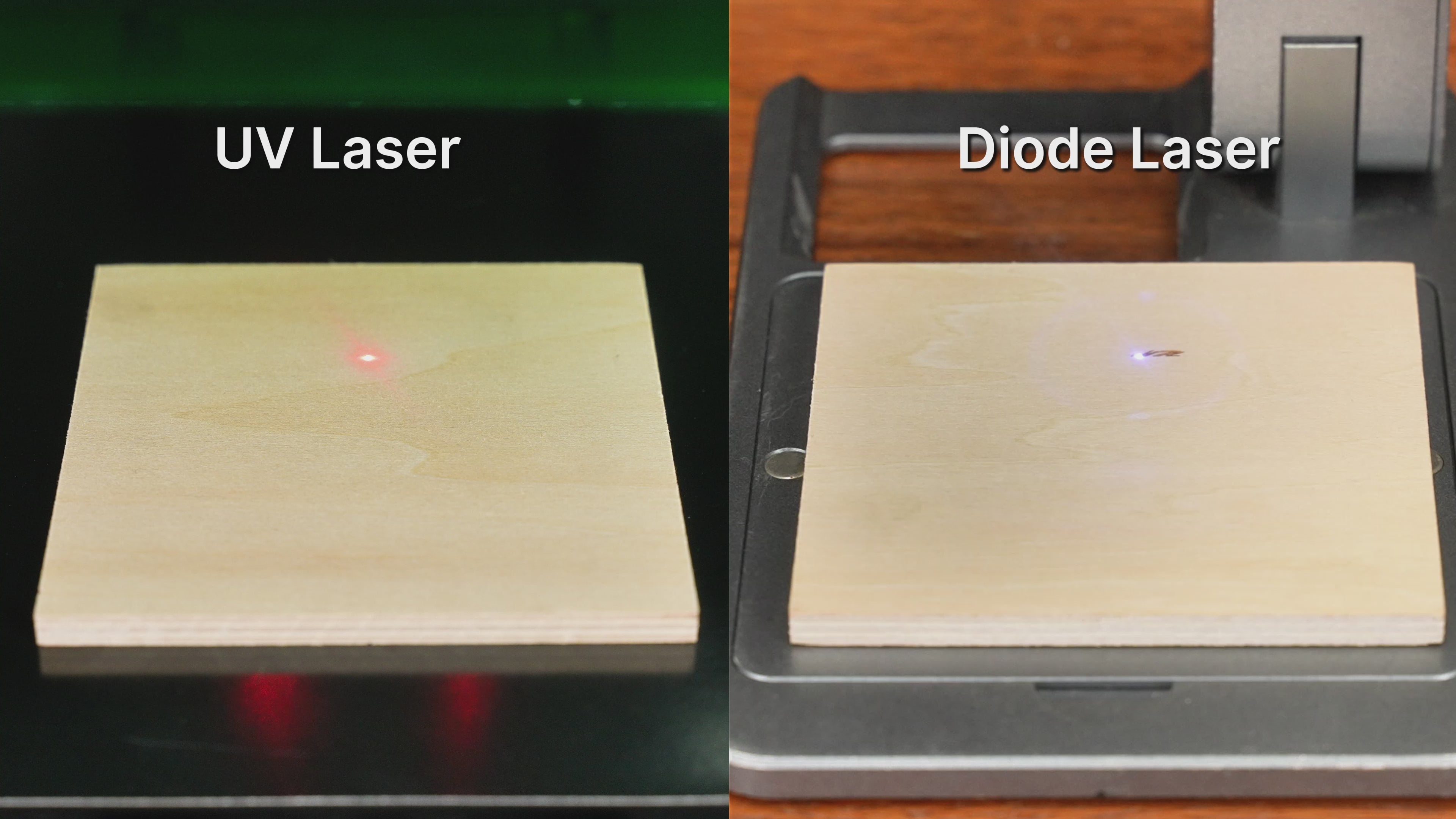

M7 Pro UV:10,000mm/s Up to10xFasterDiode: 5,000-7,000mm/sCOz: 700-1,000mm/s
Zero Burn Guarantee
Every engraving stays crisp and clean, with no char marks or scorched edges.
Make Every Craft Worth More
User-Friendly & Safe - Professional Results, Effortless Workflow

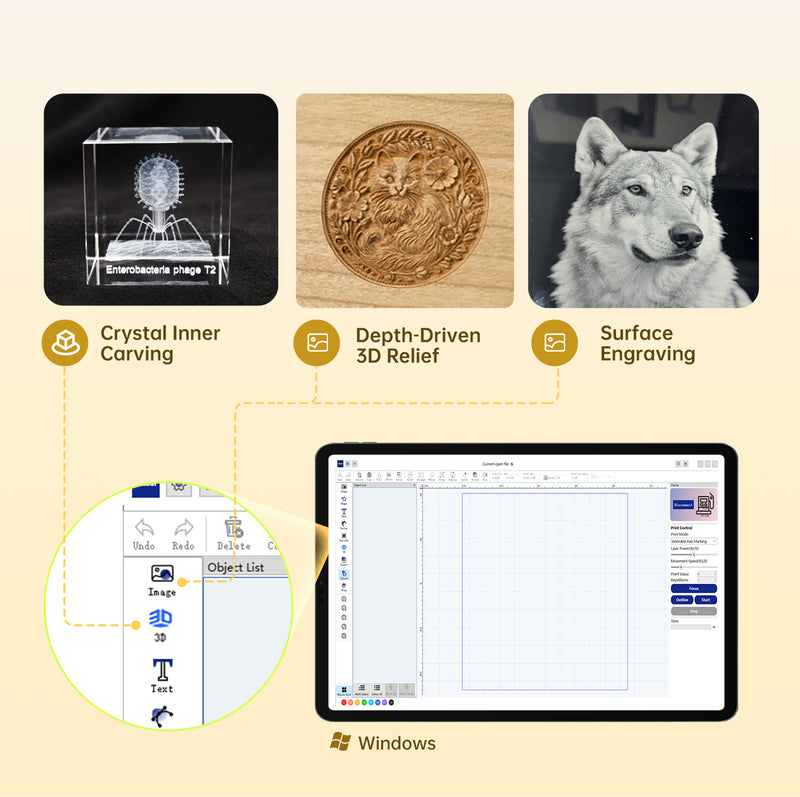

The world's first 3 in 1 multifunctional collection of user-friendly, powerful software All you have to do is use your creativity and we'll make it happen!
3D scans or mobile photo scans? We easily bring your creative ideas to life with precision and flexibility.
Ensure smooth, crisp, and flawless engravings preserving even the finest details.
M7 Pro Unboxing and Software Tutorial
Create Freely. Go Larger.
Product Parameter
| Parameter | M7 Pro |
|---|---|
| Mechanical Design | |
| Chassis Material | High-strength aluminum alloy |
| Engraving Area | 70x70mm/150x150mm(Lens-dependent) |
| Engraving Speed | 10000mm/s |
| Total Power Consumption | <440W |
| Positioning Accuracy | ±0.001mm |
| Cooling System | Active air cooling |
| Mechanical Design | |
| Laser Type | 355nm UV laser |

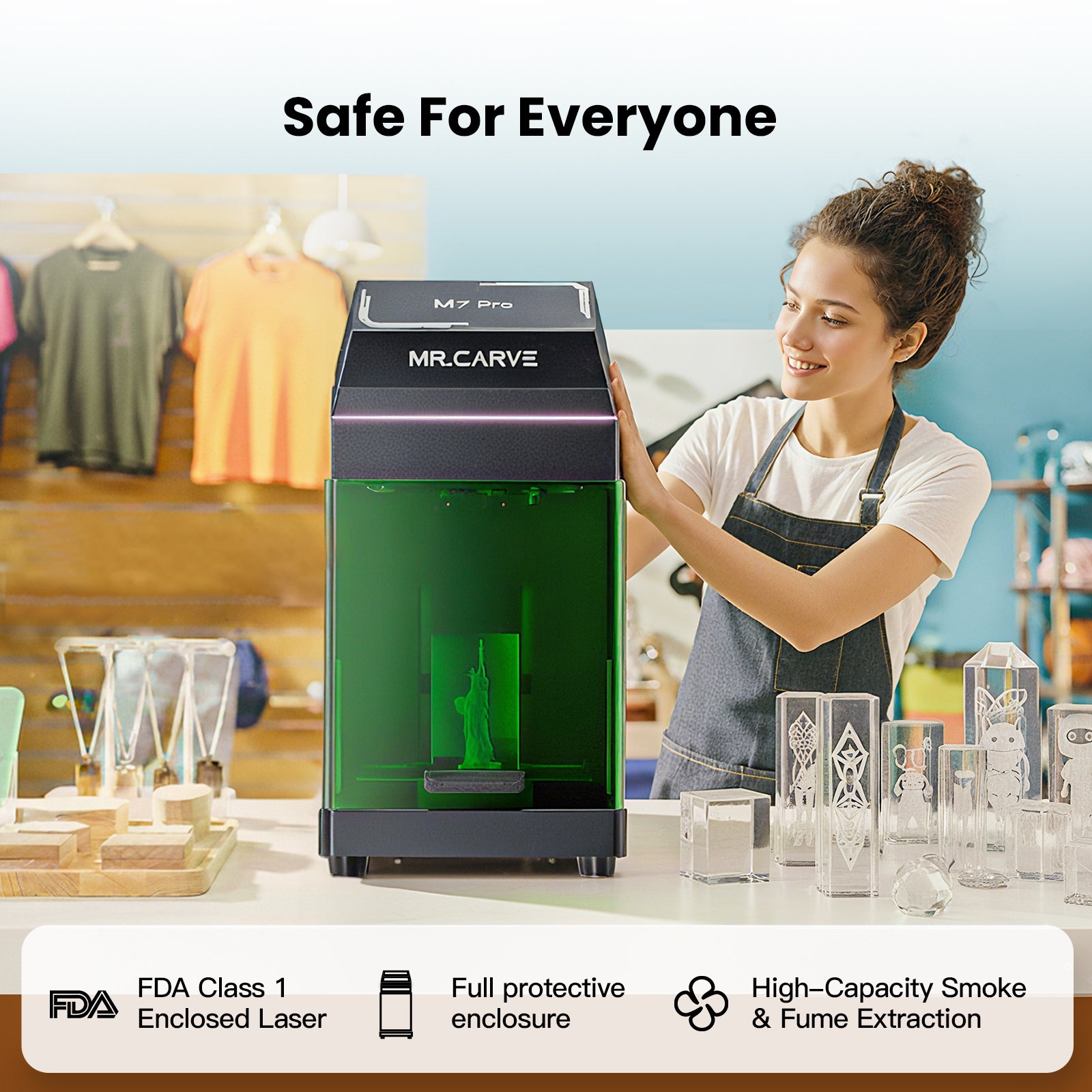

| Safety Design | Full protective enclosure |
| Focusing Mechanism | Motorized Z-axis adiustment |
| Output Power | 5W |
| Beam Diameter | <0.03mm(Min.0.01mm) |
| Beam Quality | <1.3 |
| Lifetime | 100,000 hours @27°C ambient |
| Laser Class | Class l(Eye-safe) |
| 50mm Lens Configuration | |
| Engraving Modes | Internal engraving (transparent crystal) / Flat engraving |

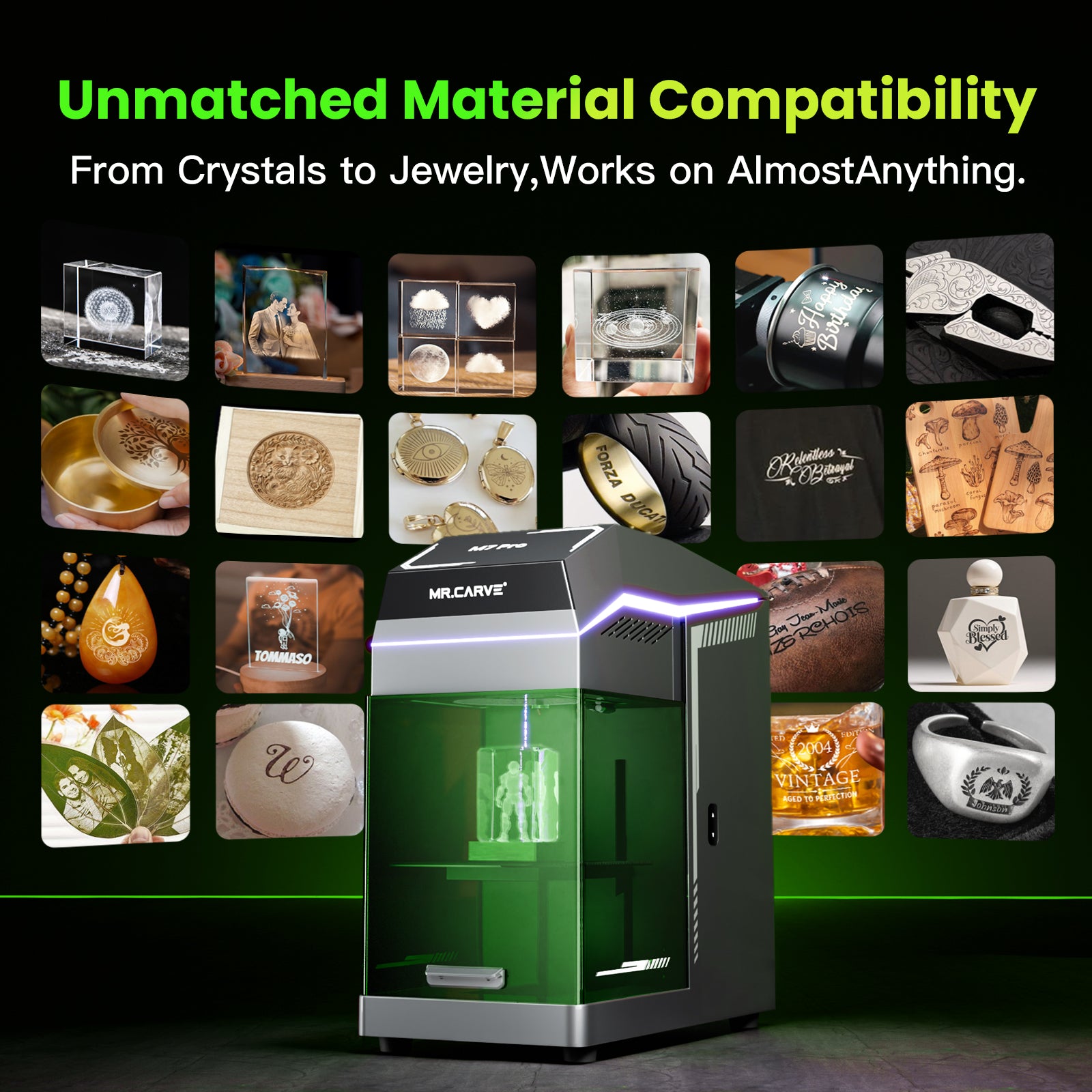

| Compatible Materials | Surface: Wood, bamboo, dyed acrylic, leather, paper fabric,corrugated board, food, plastics, bone, glass ceramics, metalsInternal: Transparent crystal/glass(refractive index matching required) |
| Engraving Mode | Flat engraving only |
| File Formats | JPEG/BMP/PLT/PNG/DXF/AIJWW/RKQ/TIF(2Dvector/raster/STL/OBJ) |
| Control Software | MRCARVE Laser Suite |
| oS Compatibility | Windows/MacOs |
| Data Transfer | USB |
