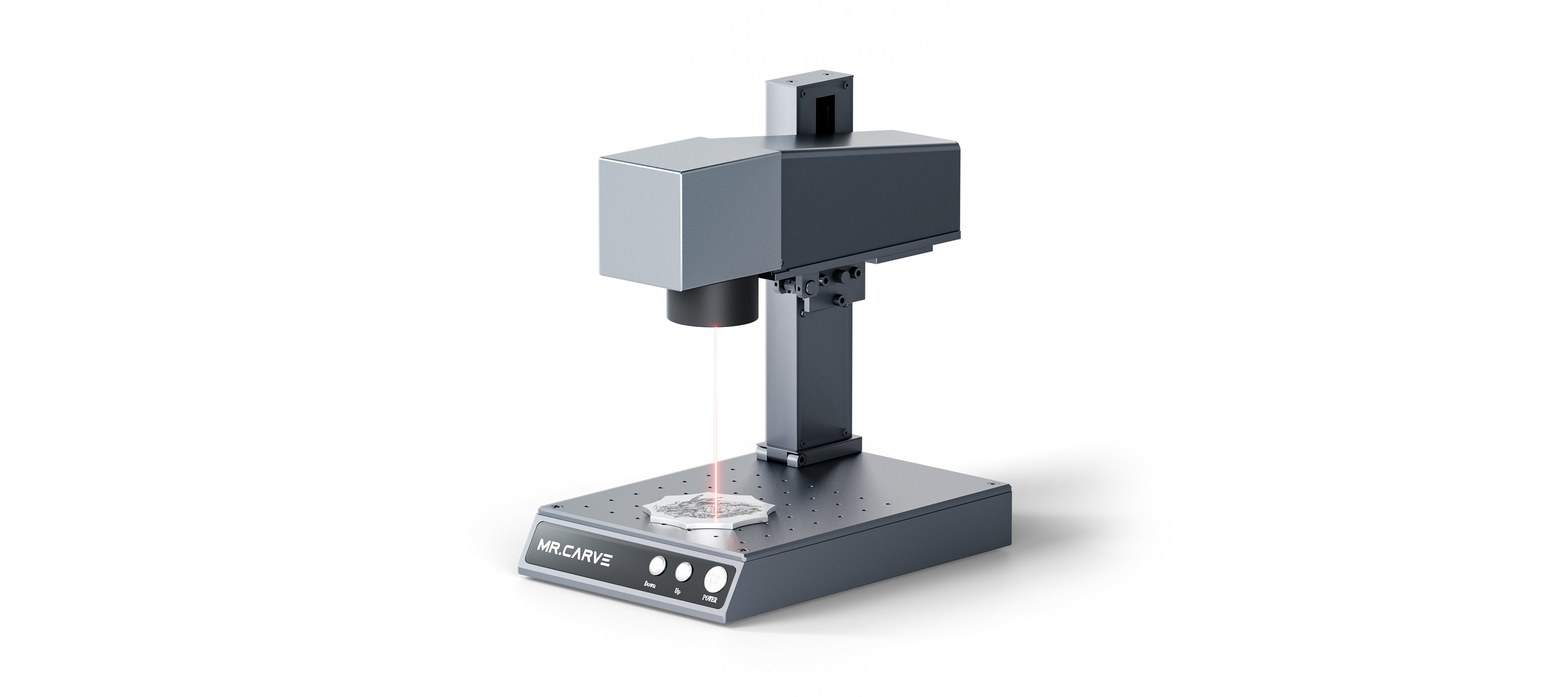

Mr.Carve M1 Pro

Portable 2W Fiber Laser Engraver Flagship Products

mr.carve M1 Pro MULTI-MATERIAL
MARKING Professional fiber marking machinesfor all metal
mr.carve M1 Pro MULTI-MATERIAL
MARKING Professional fiber marking machinesfor all metal
Adopting high-precision motor control bracket lifting and lowering, say goodbye to the traditional
hand-cranked focus adjustment way, through the M1 Pro's dual red light convergence fixed focus.
Red light preview mode
-Detecting the engraved area of a graphic
Positioning engraving size and location
Graphic outline preview mode
Real-time simulation of engraved graphics
Positioning engraving size and location
Adopting high-precision motor control bracket lifting and lowering, say goodbye to the traditional
hand-cranked focus adjustment way, through the M1 Pro's dual red light convergence fixed focus.
Red light preview mode
-Detecting the engraved area of a graphic
Positioning engraving size and location
Graphic outline preview mode
Real-time simulation of engraved graphics
Positioning engraving size and location

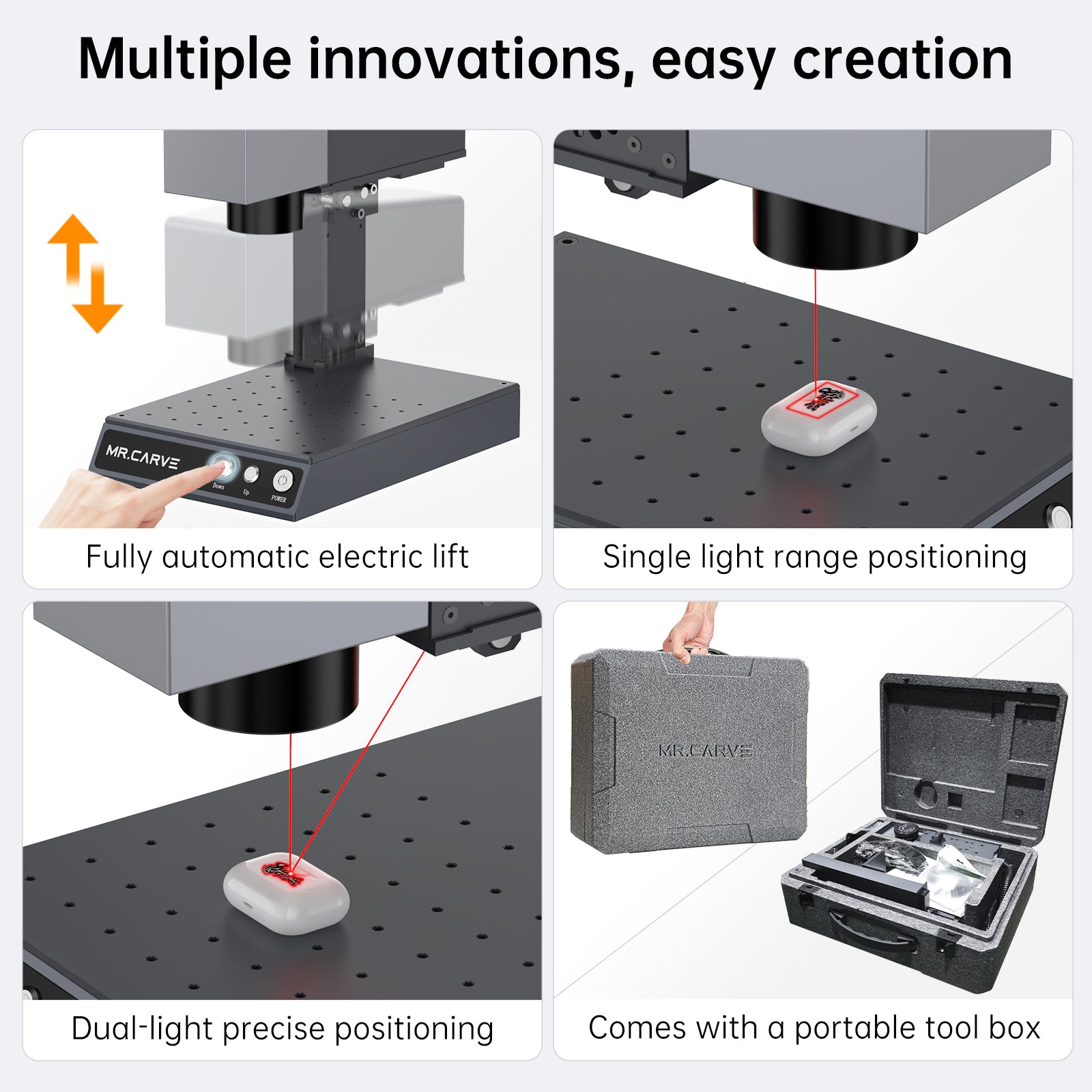

Easier focusing Electric lift
Easier focusing Electric lift
360° Rotary Roller Engraving
360° Rotary Roller Engraving
Professional Packaging
Shockproof and drop-proof Easy to carry out
Professional Packaging
Shockproof and drop-proof Easy to carry out
EASY INSTALLATION STEPS FOR BEGINNERS
1.Move the Y-axis upward and snap it into the base
2.Tighten the screws to fix the Y-axis
3.The lens (X-axis) will be stuck into the back four holes
4.Tighten the screws to fix the X-axis
5.Installation completed
EASY INSTALLATION STEPS FOR BEGINNERS
1.Move the Y-axis upward and snap it into the base
2.Tighten the screws to fix the Y-axis
3.The lens (X-axis) will be stuck into the back four holes
4.Tighten the screws to fix the X-axis
5.Installation completed

Product Parameter

Parameter MRCARVE M1
Rating 90V ~ 240V

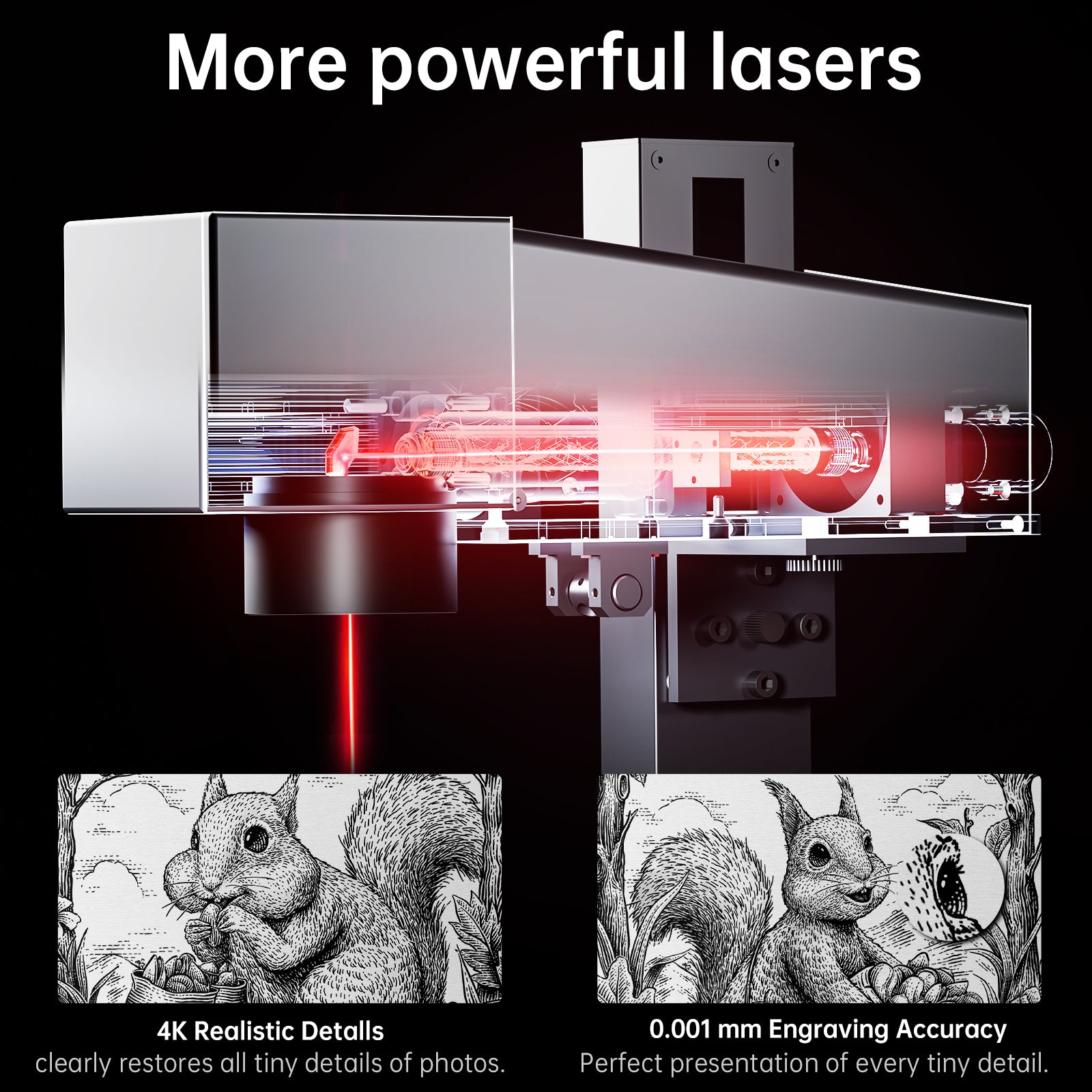

Laser power 2W
Laser wavelength 1064nm

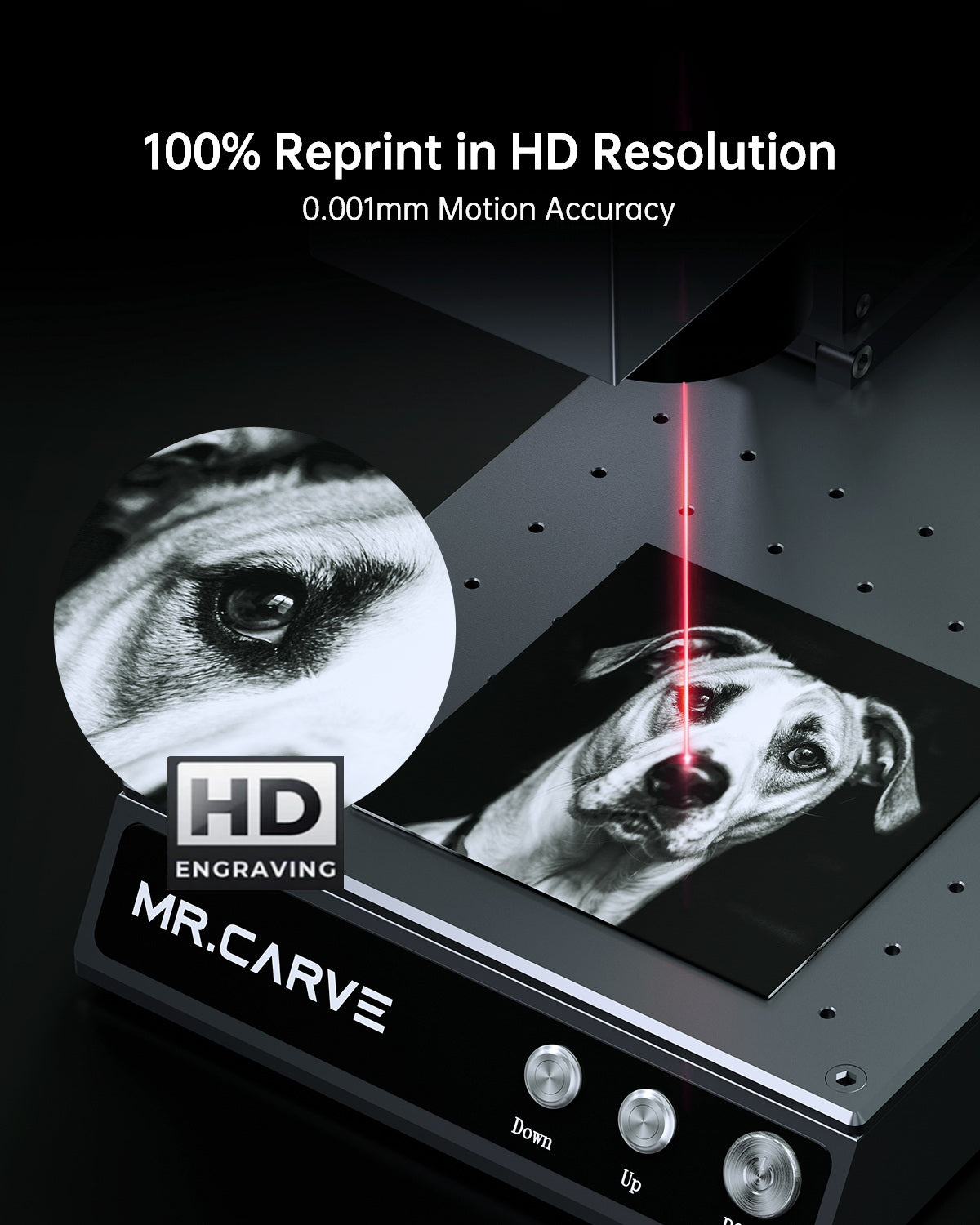

Engraving precision ±0.001mm
Maximum speed 10000mm/s
Engraving area 70*70mm
Focus mode Red and Blue Motorized Focus
Radiator Air cooling

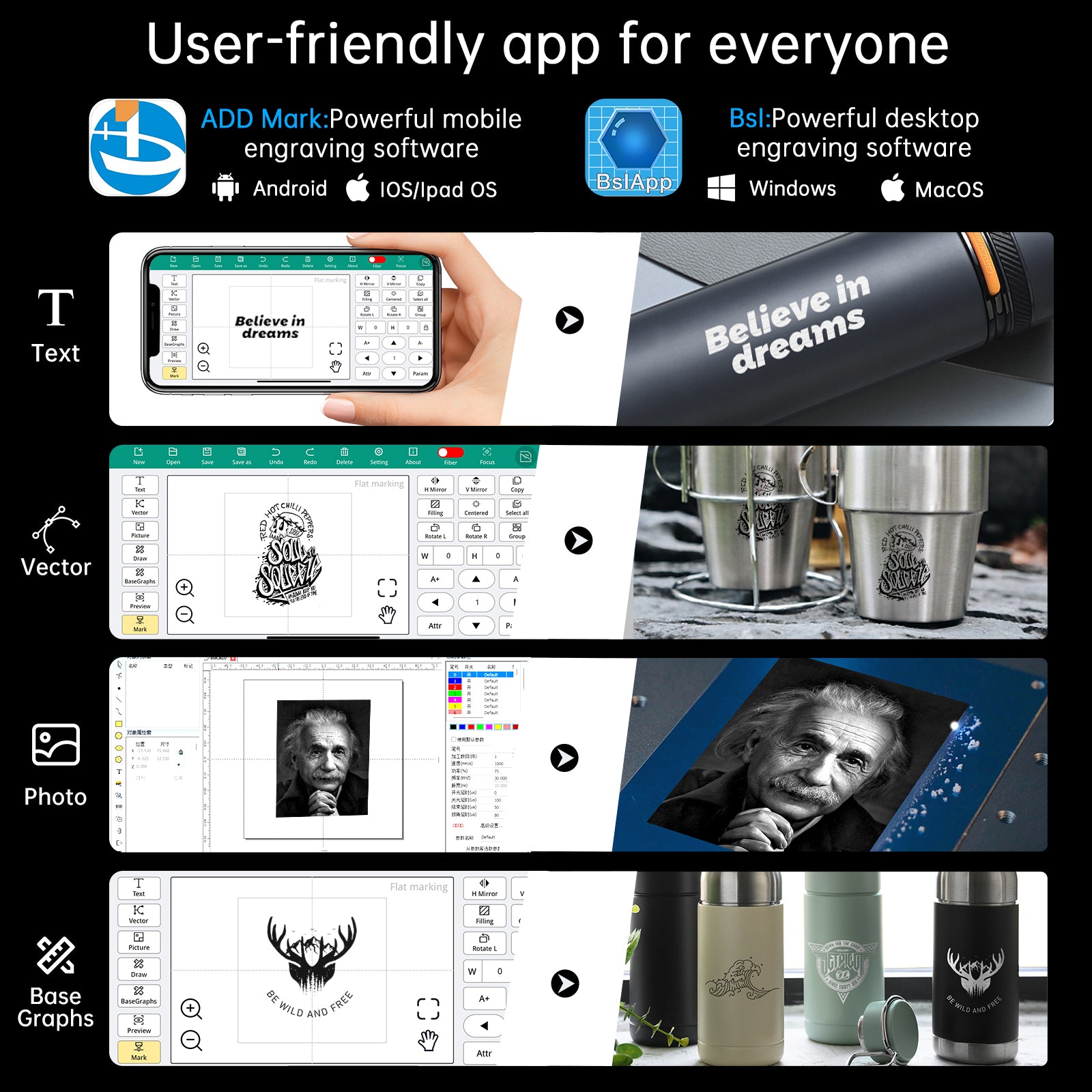

Operating system Windows/Mac/Android/iOS
Connection method Bluetooth /USB
Picture format PLT/DXF/SVG/AI/BMP/JPEG
Applicable materials All metals: stainless steel / carbon steel / iron / alloy / gold / silver / copper / aluminum, etc. Non-metallic: Plastic / Leather / Black Acrylic
Fuselage Material Aluminum + Iron
Product Size 300×200×320mm(L * W * H)
Product weight 6.2kg
